Model VM7

Our Vibratory Bowl is a cost-effective unit with an unlimited range of applications from glass to ceramic; from steel to copper, and more. The heavy-duty bowl and base are completely constructed of steel weldment and reinforced by gusset plates. The bowl is stress relieved, then shot-peened and lined with heavy-duty urethane for maximum durability.

Special spiral bowl construction eliminates impediment and aids in the unloading of parts.

 Vibratory Bowl with
Internal Parts Separation
There isn't a sturdier or more dependable unit for parts separation available on the market today.

For over 35 years, you have relied on Vibrodyne to provide you with proven quality products at affordable prices. Vibrodyne's solidly constructed Vibratory Bowl with Internal Parts Separator offers the same reliability and durability you've come to expect -- plus Vibrodyne's THREE YEAR GUARANTEE.


Top view of VM7
Three Year Guarantee
The Vibratory Bowl with Internal Parts Separator
offers the following design advantages:
  • Bowl and base - steel weldment construction reinforced by gusset plates
  • Stress relieved bowl - shot-peened for maximum durability and lined with a heavy-duty urethane
  • Precision drive system consists of a vertical flange-direct drive center mounted motor
  • Multi-step process capability
  • Available in 7 to 30 cubic foot models
  • Automatic parts unloading
  • Media discharge door
  • Removable cast urethane screen
  • Adjustable flywheel
  • Drop-on weight segments for adjustable amplitude
  • 220/440V, 3-phase, 60 Hz
  • Compound inlet piping
  • Parts drying only units available
VM Bowl Units
Machinery Specifications
Model Number VM7 VM10 VM20 VM30
Cubic Foot Capacity 7 10 20 30
Motor kw 1.4 3.5 4.8 4.8
Lining Thickness 1" 1" 1" 1.5"
Shipping Weight 2500 lbs. 3500 lbs. 4500 lbs. 4800 lbs.
Floor Space 18 sq. ft. 31 sq. ft. 48 sq. ft. 52 sq. ft.
Max. Load Capacity 1400 lbs. 2000 lbs. 6000 lbs. 9000 lbs.
Bowl Diameter (B) 52" 65" 80" 80"
Unload Height (D) 32" 37" 42" 41"
Channel Width (C) 10.5" 13" 17" 17"
Channel Depth-Avg. 14.5" 14.5" 24" 27"
Overall Height (E) 42" 48" 55" 59"
Overall Depth 52" 65" 80" 80"
Load Height (A) 37" 44" 50" 54"
Data subject to change without notice.

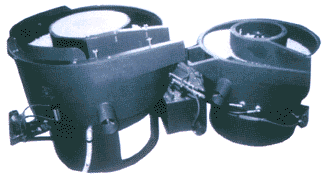

Vibrodyne's VM-Series multi-step process.
